Hardware Installation

The CI-110 is supplied with the hardware and driver installed on a tablet computer. The following steps should be repeated on each computer used with the CI-110 Plant Canopy Imager. The driver is compatible with 32 and 64 bit operating systems.

The driver is installed through the CI-110 Plant Canopy Analysis software. To install the driver after downloading the software:

1. Connect the CI-110 to the PC’s USB port.
2. Open the CI-110 software.
3. Select the Advanced Settings Tab.
4. Select Install Driver.

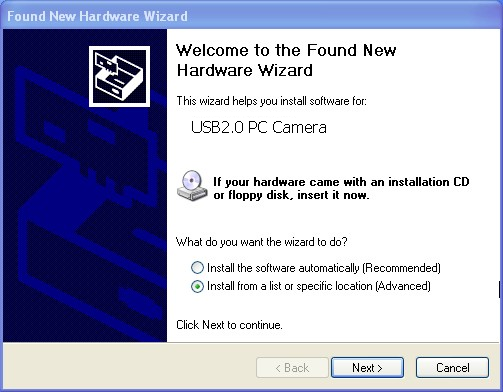

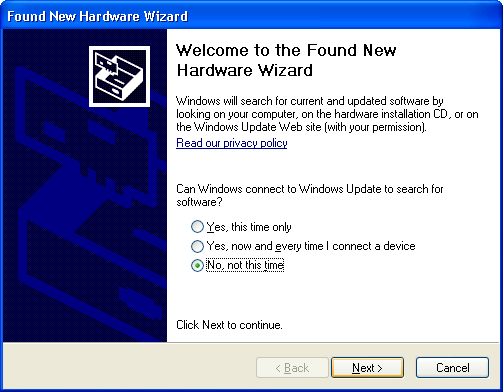

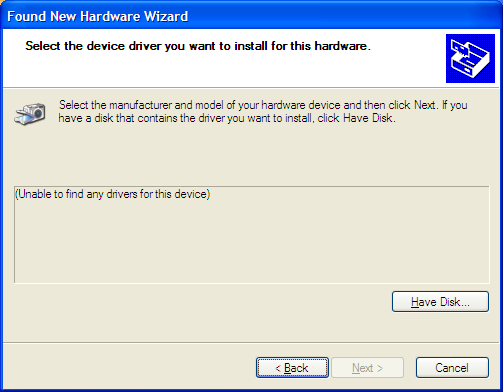

5. Click Next in the Device Driver Installation Wizard.

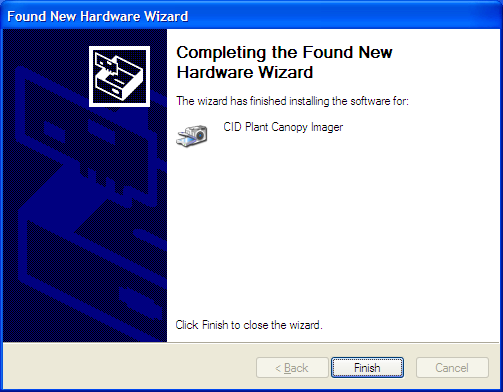

6. Click Finish to complete the driver installation.
