Firmware Update

Transfer all data files from the SD card and DELETE all data files on SD card before doing the firmware update! Leaving data files from older firmware versions may corrupt the SD card.

Several files should be accessed from the software CD or downloaded from the F-900 support webpage (https://felixinstruments.com/support/F-900/) under software. Always double-check the webpage for the latest compatible firmware version depending on the serial number of the F-900. Please contact Felix Instruments technical support with questions about firmware updates.

  • Setup application: F-900_Package_Setup_v1.0.exe
  • Firmware code file: F-900-ver-x.xx.bin (Example: F-900-ver-4.6.1.bin)

F-900 Driver Installation Procedure

  1. Connect the F-900 to the computer using the mini-USB to USB cable.

  2. Launch F-900_Package_Setup_v1.0.exe

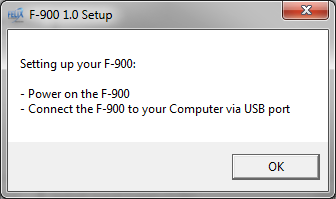

  3. Set up device as prompted message below

    900 setup

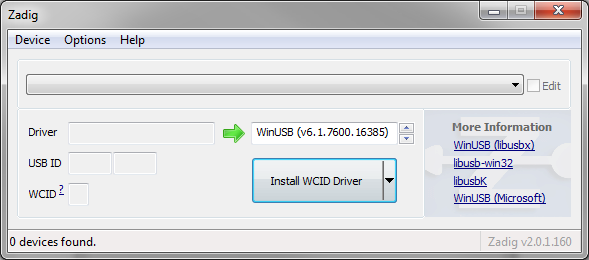

  4. The F-900 requires an libusb driver. In the Zadig window, select Options > List All Devices.

    900 setup

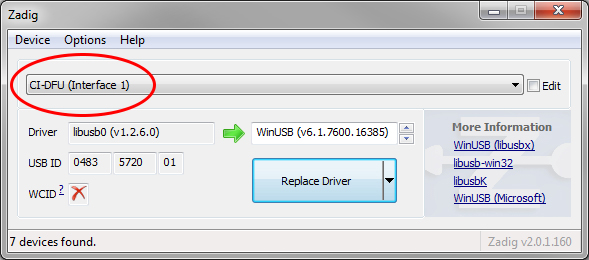

  5. In the dropdown list, select CI-DFU (Interface 1) device.

    900 setup

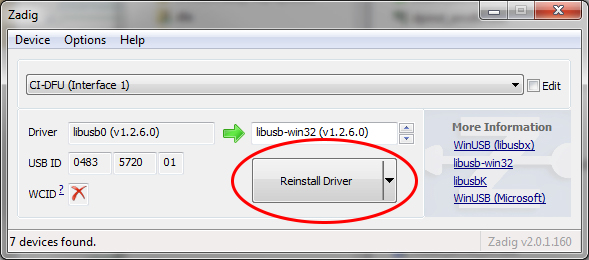

  6. At the spinner list (green arrow), select libusb-win32.

  7. Click Install Driver to proceed installing libusb driver. This could take up to 1 minute to complete.

    900 setup

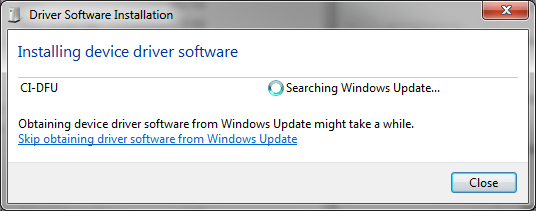

    Note: Wait for Windows “obtaining driver” process to complete before clicking Install driver.

    900 setup

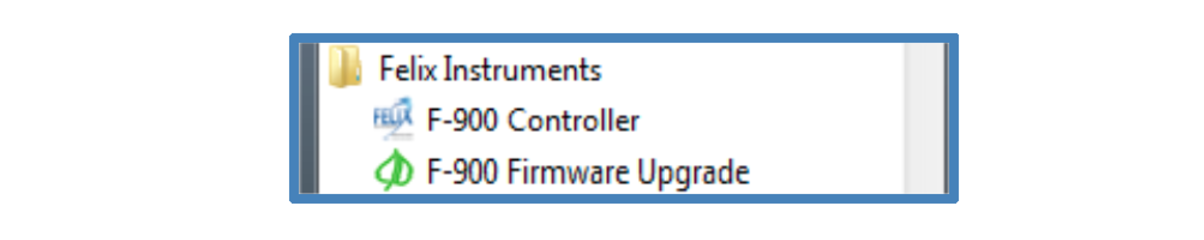

  8. When the device drivers and software package installation is done, check for Java updates. In the Windows Start menu, there will be shortcuts for F-900 Controller and F-900 Firmware Upgrade.

    900 setup

F-900 Firmware Update Procedure

  1. After installing the driver, open the F-900 Firmware Upgrade application: “Transfer Code to CI-203 or CI-900.”

  2. If device is on, press the Power button to power off the device. Hold the down arrow button, then press the Power button. The device's internal green LED near the USB port/SD card should start flashing quickly. The device must be unplugged for this to work.

    firmware update

  3. After the green LED is flashing quickly, connect the device to the PC with USB cable.

  4. Select File and Open in the F-900 Firmware Upgrade program.

  5. Navigate to where the F-900-ver-x.xx.bin is saved on the PC hard drive. This is the code for the instrument.

  6. Follow the instructions in the software to hold down the Power button.

  7. Release the Power button when instructed.

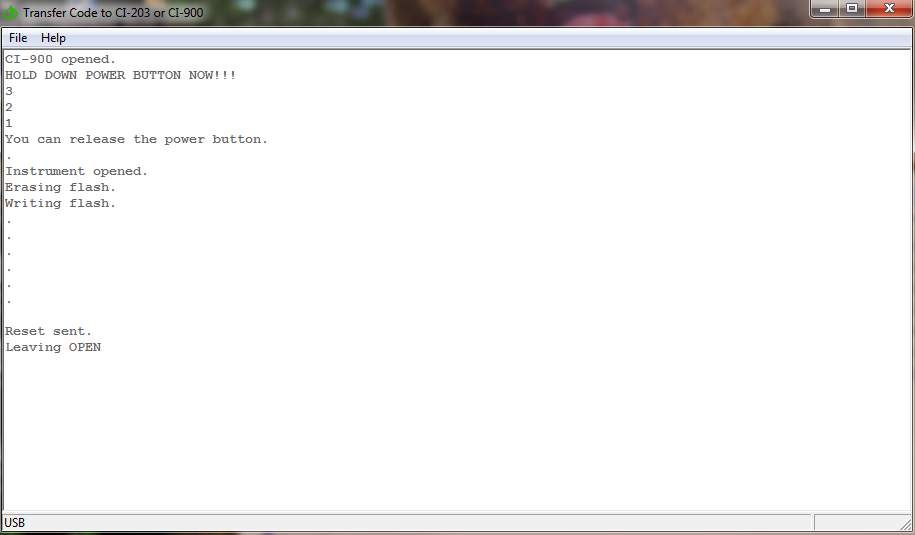

  8. Wait for the flash to be erased and then written. When the firmware transfer is complete, the software will indicate reset sent, followed by “leaving open”. The F-900 will power off.

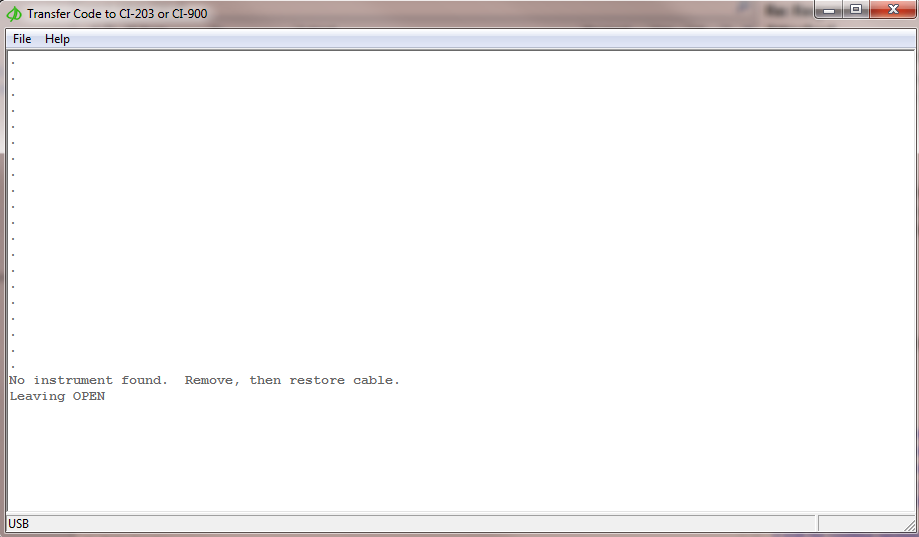

  9. Power on the F-900 and check the firmware version at the top of the display. The Transfer Code software application will indicate that no instrument is found, if the F-900:

    1. is not connected to the computer
      • verify USB connection and LED is flashing
    2. is not powered on
      • verify on device display
    3. driver is not properly installed
      • install or re-install F-900 driver

firmware update

If the F-900 becomes unresponsive or frozen during the firmware update, especially when using Windows 8, please try the following:

  1. Hold the power button for 10 seconds and let go.
  2. Hold the down arrow button then press power button, device's internal green LED near USB port/SD card should start flashing quickly
  3. Connect the device to computer via USB and repeat the download firmware procedure.

After the firmware update is successful, it is recommended to let the F-900 measure with the Closed Loop On (Measure > Settings) for 12 hours.
